As a seasoned supplier of commercial plywood, I've encountered numerous inquiries regarding the appropriate nail sizes for different types of commercial plywood. This topic is crucial as the right nail size can significantly impact the structural integrity, durability, and overall performance of the plywood in various applications. In this blog, I'll delve into the factors to consider when choosing nail sizes for commercial plywood and provide some general guidelines to help you make informed decisions.
Factors Affecting Nail Size Selection
Plywood Thickness
The thickness of the commercial plywood is one of the primary factors influencing nail size selection. Thicker plywood generally requires longer nails to ensure a secure hold. For instance, 12mm Packaging Plywood is commonly used in packaging applications. A nail length of around 1 - 1.5 inches can be suitable for this thickness, as it can penetrate through the plywood and provide sufficient anchorage.
On the other hand, 8mm Packaging Plywood is thinner. Nails in the range of 0.75 - 1 inch are often appropriate. These shorter nails can effectively hold the thinner plywood without causing excessive splitting or damage.

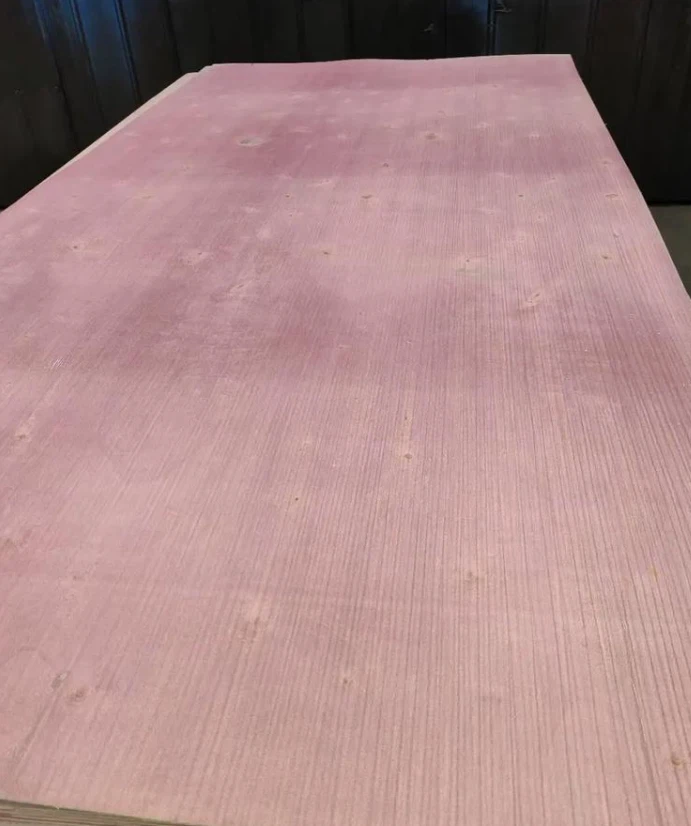

For 18mm Packaging Plywood, which is thicker and more robust, nails of 1.5 - 2 inches are typically recommended. The longer nails can reach deeper into the plywood, providing a stronger connection.
Application Type
The intended application of the commercial plywood also plays a vital role in determining the nail size. If the plywood is used for light - duty applications such as interior wall paneling or temporary partitions, smaller nails may be sufficient. For example, in a simple interior wall installation where the plywood is mainly for aesthetic purposes and does not bear significant weight, nails around 0.75 inches can be used.
However, for heavy - duty applications like flooring or structural framing, larger and stronger nails are required. In flooring applications, the plywood needs to withstand the weight of foot traffic, furniture, and other loads. Nails of 1.5 - 2 inches or even longer may be necessary to ensure a stable and long - lasting installation.
Load - Bearing Requirements
Understanding the load - bearing requirements of the commercial plywood is essential. If the plywood is part of a structure that will support heavy loads, such as in a commercial building's roof or floor system, the nails must be able to transfer the load effectively. Longer and thicker nails are better at handling these high - stress situations.
For example, in a warehouse floor made of commercial plywood, the nails need to be large enough to prevent the plywood from separating under the weight of stored goods and moving equipment. In such cases, nails with a diameter of at least 0.12 inches and a length of 2 inches or more are often used.
General Nail Size Guidelines for Different Plywood Thicknesses
Thin Plywood (6 - 8mm)
For thin commercial plywood in the 6 - 8mm range, such as the 8mm Packaging Plywood, common nail sizes are 0.75 - 1 inch in length. These nails are usually 15 - 16 gauge. The 15 - 16 gauge nails are relatively thin, which helps prevent splitting in the thin plywood while still providing adequate holding power.
Medium - Thickness Plywood (10 - 12mm)
Plywood with a thickness of 10 - 12mm, like the 12mm Packaging Plywood, typically requires nails that are 1 - 1.5 inches long. A 14 - 15 gauge nail is a good choice. The slightly thicker gauge provides more strength and stability, and the 1 - 1.5 - inch length allows for a secure connection within the plywood.
Thick Plywood (15 - 18mm and above)
When dealing with thick commercial plywood, such as the 18mm Packaging Plywood, nails should be 1.5 - 2 inches long or even longer. A 12 - 14 gauge nail is recommended. The thicker gauge and longer length ensure that the nail can penetrate the thick plywood and hold it firmly in place, especially in high - stress applications.
Tips for Using Nails with Commercial Plywood
Pre - Drilling
In some cases, especially when using thicker nails or working with hard - wood plywood, pre - drilling can be beneficial. Pre - drilling helps prevent the plywood from splitting, especially at the edges. Drill a hole slightly smaller than the nail diameter before inserting the nail. This allows the nail to fit more easily and reduces the risk of damage to the plywood.
Spacing
Proper nail spacing is crucial for the integrity of the plywood installation. For most applications, nails should be spaced evenly along the edges and at regular intervals across the surface. A general rule of thumb is to space nails about 6 - 8 inches apart along the edges and 8 - 12 inches apart in the field of the plywood. However, this can vary depending on the application and load - bearing requirements.
Nail Type
In addition to size, the type of nail also matters. Common nails are suitable for many general applications, but for outdoor or high - humidity environments, galvanized or stainless - steel nails are recommended. These nails are resistant to rust and corrosion, which can extend the lifespan of the plywood installation.
Conclusion
Selecting the right nail size for commercial plywood is a critical step in ensuring a successful and long - lasting installation. By considering factors such as plywood thickness, application type, and load - bearing requirements, you can make an informed decision. Whether you're working on a small DIY project or a large - scale commercial construction, using the appropriate nail size will enhance the performance and durability of the commercial plywood.
If you're in the market for high - quality commercial plywood and need more advice on nail selection or other aspects of plywood use, I'm here to help. Contact me to discuss your specific requirements and explore the best solutions for your project.
References
- Wood Handbook: Wood as an Engineering Material, Forest Products Laboratory
- Plywood Design Specification, American Plywood Association
